Hypoid Gear Hollow Actuator ke nepahetseng rotary actuator hore kopanya e hypoid Gear phetiso tsamaiso, sekoti sebopeho moralo, le matla drive mosebetsi. E šomišwa kudu go fetolela maatla a entšene go tšhišinyego ya go dikološa ye e laolwago, mola e fihlelela dinyakwa tše di kgethegilego tša go hloma goba tša mošomo ka sebopego sa sekoti sa bogareng. E dirišwa kudu didirišweng tša go itirela, go dira dilo ka go nepagala, thekinolotšing ya diroboto le mafapheng a mangwe.
Hypoid Gear Hollow Actuator ke nepahetseng rotary drive sesebediswa hore kopanya hypoid Gear phetiso le sekoti shaft moralo. E šomišwa kudu maemong a go itiriša ao a nyakago torque ye kgolo, go thatafala mo go phagamego, go boela morago ga fase, le go dumelela go threading ga bogareng. Sebopego sa yona sa motheo ke go šomiša mehola ya phetišetšo ya digere tša hypoid (mojaro wo mogolo, lešata le lenyenyane), mola o fihlelela kgokagano ya megala, dipotologo tša moya goba dikarolo tša metšhene ka sebopego se se nago le sekoti.
Moralo wa Hypoid Gear Hollow Actuator o dikologa dielemente tše tharo tša motheo: "Phetišetšo ye e šomago gabotse", "Mošomo wa sekoti", le "Taolo ye e nepagetšego".
Dibopego tše di tlwaelegilego di akaretša:
|
1 |
Terene ya Gear ya Hypoid |
1).A hypoid Gear ke mofuta o khethehileng oa helical Gear bopilwe ka para ya digere le bao e seng intersecting dilepe empa perpendicular (kapa angled) ho e mong le e mong (hangata e khanna pinion le khannoang gear). Ge go bapetšwa le digere tša helical tše di tlwaelegilego goba digere tša seboko, lefelo la yona la go kgomagana le leino le legolo, bokgoni bja phetišetšo bo phagame (gantši 85% -95%), e ka fetišetša torque ye kgolo, gomme e dumelela offset (yeo e sego collinear) magareng ga shaft ya go tsenya le shaft ya go ntšha, go fokotša mellwane ya sebaka sa go hloma. 2).Transmission thulaganyo: The enjene matla khanna mafolofolo hypoid nyenyane Gear ka input shaft, 'me joale meshes ho khanna khannoang Gear, qetellong fetisetsa tshisinyo potoloho ho dipholo tsa tafole. Ka nako e swanago, go godiša torque le peakanyo ya lebelo di fihlelelwa ka dikarolwana tša phokotšo ya gear (tše bjalo ka 10:1, 50:1). |
|
2 |
Moralo wa sekoti |
1).A sekoti lesoba (le bophara ho tloha mashome a millimeters ho makholo a millimeters) e reserved ka bohareng ba actuator bakeng sa threading diphaephe (tse kang megala, diphaephe moea, litlhale Optical), qoba protruding likarolo tsa workpieces, kapa finyella "ka mofuta" tlhomamiso ya workpieces feta ka bohareng (schang ho lokisa bohareng sele ya workpiece ka sekoti lesoba nakong go lemogwa ga go dikološa). 2).Go ba gona ga mekoti ye e nago le sekoti ga go ame go tia ga sebopego ka kakaretšo, gomme tabletop e sa dutše e ka thekgwa ke dibering tša go nepagala tše di phagamego - (tše bjalo ka dibering tša sefapano tša rolara) go netefatša go dikološa mo go boreledi. |
|
3 |
Drive le Taolo Mojule |
1).Hangata kopantswe le servo motors (ho fana ka matla), encoders (boemo ditshwaelo), le molaodi segokanyimmediamentsi sa sebolokigolo ho theha koaloa - loop taolo tsamaiso e tšehetsa nepahetseng positioning (tse kang ka hare ho ± 0.1 tekanyo ) le lebelo phetolo. dikai ba bang ba lumellana le stepper motors kapa DC motors, ikamahanya le maemo ho ditlhoko tse fapaneng nepahetseng. |
Key ditekanyetos botekgeniki (kgetho konokono ditshupo) . yaHypoid Gear Sekoti Actuator
|
1 |
Ditekanyetšo tša phetišetšo |
1).Phokotšo karo-karolelano: e laola dipholo tsa torque le lebelo (phokotso karo-karolelano=enjene lebelo / dipholo tsa lebelo=dipholo tsa torque / enjene torque, hlokomoloha tahlehelo), ka tloaelo ho tloha 5:1 ho 100:1, 'me hloka ho kgethwa ho ea ka mojaro torque le potoloho ditlhoko. 2).Transmission bokgoni: ka ho toba ama tshebediso ya matla le mocheso moloko. Bakeng sa maemo a godimo-go nepagala, go swanetše go fiwa pele go kgetha dika tšeo di nago le bokgoni bja go feta goba bjo bo lekanago le 90%. |
|
2 |
Hollow moralo ditekanyetos |
1).Hollow aperture: Ho hlokahala hore ho tšoana le threading bophara, workpiece boholo, kapa qoba ditlhoko ho qoba lekanyetsa tshebediso ya boemo ka lebaka la hore aperture e nyenyane haholo. 2).Table boholo: The bophara kapa lehlakoreng bolelele hloka ho koahela ditlhoko tlhomamiso ya workpiece le fixture, 'me holim'a hangata na T - bōpehileng joaloka grooves kapa threaded mekoti bakeng sa fixation. |
|
3 |
Go nepagala le Bokgoni bja Morwalo |
1).Positioning nepahalo / repeatability positioning nepahalo: konokono pontshi, nepahetseng phumano hloka Ka tlaase ho moo kapa lekana le ± 10 arc metsotswana, le indasteri kopano ka phomola ho ± 1 arc motsotso. 2).Maximum axial / radial mojaro le overturning motsotso: hloka ho balwa e thehiloeng boima ba 'mele palo yohle ya workpiece le tlhomamiso eccentricity ho qoba beha apara kapa ho nepahala ho senyeha bakang ke overload. |
|
4 |
Taolo le Go Sepelelana |
1).The enjene mofuta (servo / stepper), ditshwaelo mokgwa wa (encoder mofuta), le taolo segokanyimmediamentsi sa sebolokigolo (pulse / bese / EtherCAT) hloka ho ba lumellana le khomphuta ya ka holimo kapa PLC le tšehetso automation kgokagano. |
Mona Leqepheng lena, re tsebisa letoto laHypoid Gear Hollow Diforamo Rotary,o ka bona ya data lakane, tlhahiso litšoantšo,vedios ya teko ka tsela e latelang:
Gape O amogetšwe go bogela diprotšeke tše dingwe goba o etele gallery ya rena ya dibidio ka Youtube: https://www.youtube.com/@tallmanrobotics
Go paka le go romelwa gaDitafole tša go Rotary tše di nago le sekoti:

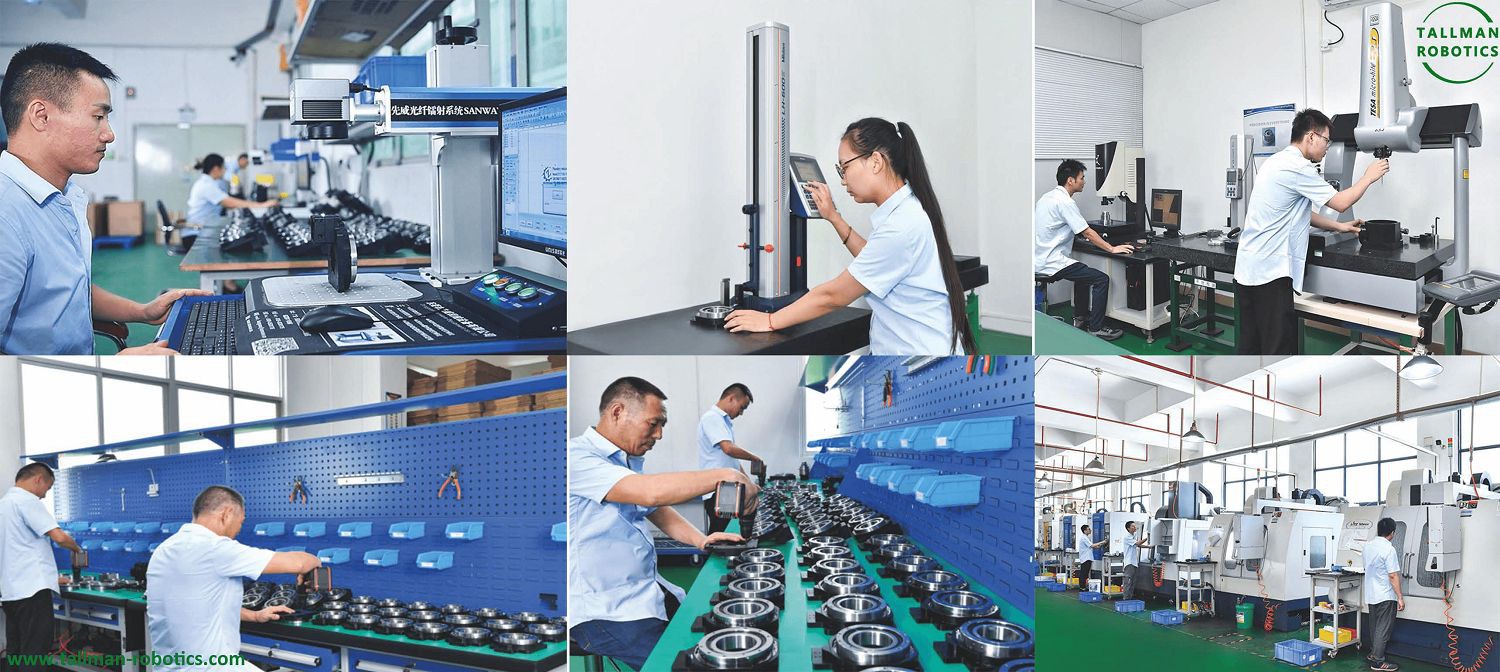

Tšweletšo yaDitafole tša go Rotary tše di nago le sekoti:
Ge go bapetšwa le didirišwa tše dingwe tša go dikološa tša gear tše bjalo ka didirišwa tša go dikološa tša gear tša seboko le ditafola tša go dikološa tša gear ya dipolanete, mehola ye e kgethegilego yaHypoid Gear Sekoti Actuatordi bonagala go:
1).High phetiso bokgoni le torque segokanyipalo: The meshing litšobotsi tsa hypoid digere etsa phetiso bona bokgoni phahameng haholo ho feta hore seboko Gears (hangata feela 60% -70%), 'me ba ka output torque e khōlō ka tšoanang enjene matla, ho etsa hore ba loketseng bakeng sa boima-mosebetsi maemo a.
2).Compact sebopeho le tlhomamiso tenyetsehang: The input shaft le dipholo tsa shaft ba etselitsoe bao e seng collinear (ka hlophisoa paatsepama kapa offset), kopantswe le sekoti lesoba mosebetsi, e leng ka ikamahanya le maemo ho rarahaneng thepa dipeakanyo le ho fokotsa sebaka hapa.
3).Low lerata le bophelo bo bolelele: The Gear leino holim ke nepahetseng fatše, netefatsa boreleli meshing le tlaase tshebetso lerata ho feta tloaelehileng helical Gears; Gomme kabo ya kgateletšego ya kgokagano godimo ga leino e swana, go apara go nnyane, gomme bophelo bja tirelo bo telele (gantši go fihla go diiri tše 10000 goba go feta moo).
4).Balancing nepahalo le mojaro bokgoni: Ka servo koaloa - loop taolo, le positioning nepahalo ka fihla ± 5 arc metsotswana (nepahalo ea mohlala), ha hape ho khona ho mamella axial / radial mejaro le metsotso e phethola, loketseng bakeng sa ditlhoko ho tloha bobebe nepahetseng tlhahlobo ho mahareng -sized indasteri kopano.
Maemo a tlwaelegilego a tirišo yaHypoid Gear Sekoti Actuator:
Diforamo tša Hypoid Gear Hollow di šomišwa kudu go:
1).Precision go itiriša kopano: tse kang dikologela le go logaganya dikarolo elektronike, multi seteishene kopano ya dikarolo likoloi, le threading megala ka sekoti mekoti ho fokotsa phaephe entanglement.
2).Non ikopanye le phumano thepa: tse kang Optical phumano le tham mong bang laser skena, bohareng ba workpiece e tsitsisoa ka sekoti lesoba, 'me potoloha tafole khanna lense phumano ho skena 360 tekanyo .
3).Robot manonyeletso le turntables: Small roboto rotary manonyeletso (sebelisa dibopeho compact), boima - mosebetsi turntables (tse kang sele ea bone ea mochine sesebediswa), hloka phahameng torque dipholo tsa le qoba phaephe tšitiso.
4).Packaging le Sorting Equipment: Mola wa kopano o dikološa tafola ya go hlopha, gomme diphaephe tša moya di rulagantšwe ka mekoti ye e nago le sekoti go fihlelela go fetola ka lebelo ga diteišene tša go hlopha.
Hypoid Gear Hollow Actors ke thepa ya phethagatšo ya intasteri yeo e kopanyago phetišetšo ye e šomago gabotse ya di-gear tša hypoid, mešomo ye e šomago ya dibopego tše di nago le sekoti, le taolo ya servo ye e nepagetšego. Boleng bja yona bja motheo bo rarolla dintlha tše tharo tše kgolo tša bohloko tša "phetišetšo ya morwalo wo boima", "go lekanyetša sebaka", le "go efoga diphaephe". Ke karolo ya bohlokwa ya go fihlelela taolo ya tšhišinyego ya go dikološa ka mela ya tšweletšo ya go itiriša le didirišwa tša go hlahloba ka go nepagala. Ge o kgetha, go bohlokwa go tsepamiša kgopolo go swantšha tekanyo ya phetišetšo, aperture ye e nago le sekoti, bokgoni bja go rwala, le dinyakwa tša go nepagala, mola gape o ela hloko go sepelelana le tshepedišo ya taolo.
